PS4 Calibration

Only genuine Sony controllers. Aftermarket clones and “compatible” pads almost never expose the factory calibration path.

Gamepad Tester Pro currently accepts:

• DualShock 4
• DualSense
• DualSense Edge (with extra notes below)
• PS VR2 Sense controllers (limited / experimental)

Advanced stick shaping and the quick smoke-test panel are DualSense / Edge only.

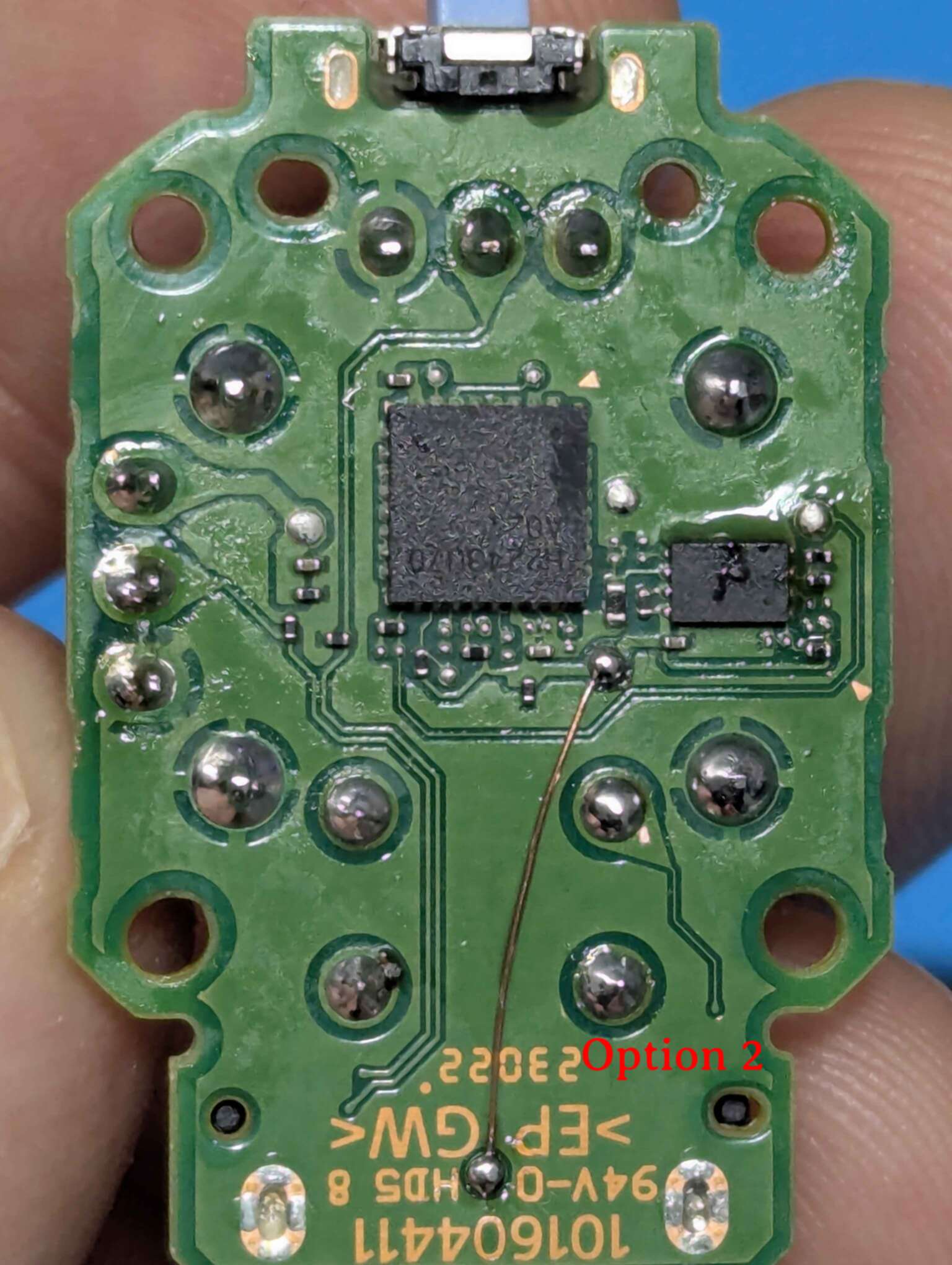

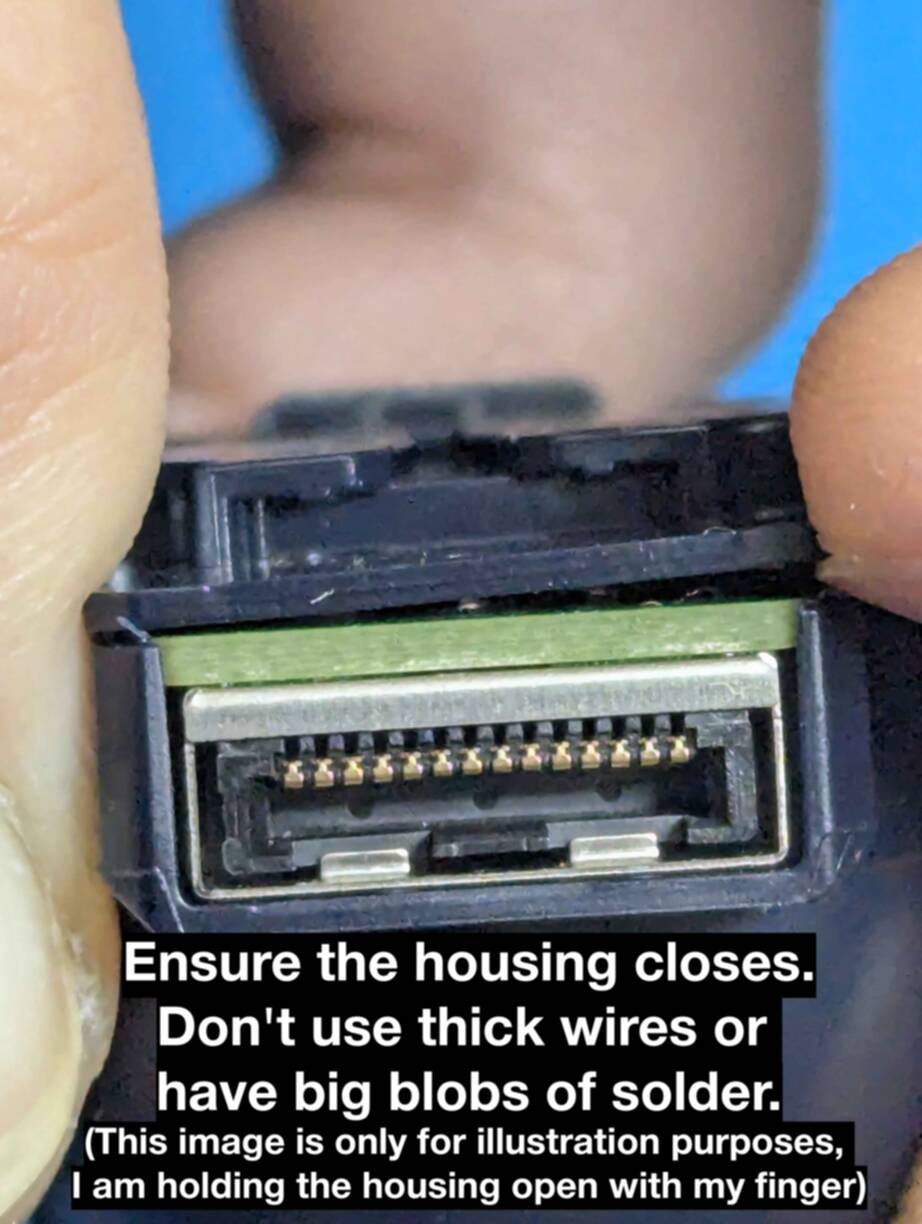

Edge note: each stick module blocks permanent writes until write-protect is lifted in hardware. That means a careful solder or probe job on both modules, thin wire so the shell still closes, and no shorts to ground. Photos for common joint locations: location A, location B, shell fit.

Chrome or Edge opens a direct USB WebHID session with the pad. Gamepad Tester Pro then issues the same class of factory calibration messages used when sticks are aligned on the production line.

You can re-sample idle center, map full travel, preview the result live, and — only if you choose — commit those numbers into the controller’s non-volatile memory.

Sony and PlayStation do not operate or endorse this page.

No. This is an Gamepad Tester Pro browser tool aimed at repair shops and DIY users who already swapped sticks and need a clean software map.

For DualShock 4, Gamepad Tester Pro can flag many clones. Fakes often mimic normal gameplay reports but skip undocumented calibration commands, so Connect or calibrate will fail anyway.

DualSense authenticity checks are thinner. If the pad will not connect or calibrate, treat it as unsupported and stop — do not keep retrying permanent saves.

Yes. Run the flow again, watch the live stick plot until it looks right, then press the permanent save button once more. The new write replaces the previous committed map.

Before you commit: unplug the USB cable. Temporary session values disappear and the last committed map returns. Always preview before writing.

After you commit on DualSense or Edge: open Restore previous, pick a snapshot, then apply it. If the list looks empty, reboot the pad once and open Restore again.

Snapshots sit in this browser’s local storage on this PC. Clearing site data, switching browsers, or using private mode can erase them forever.

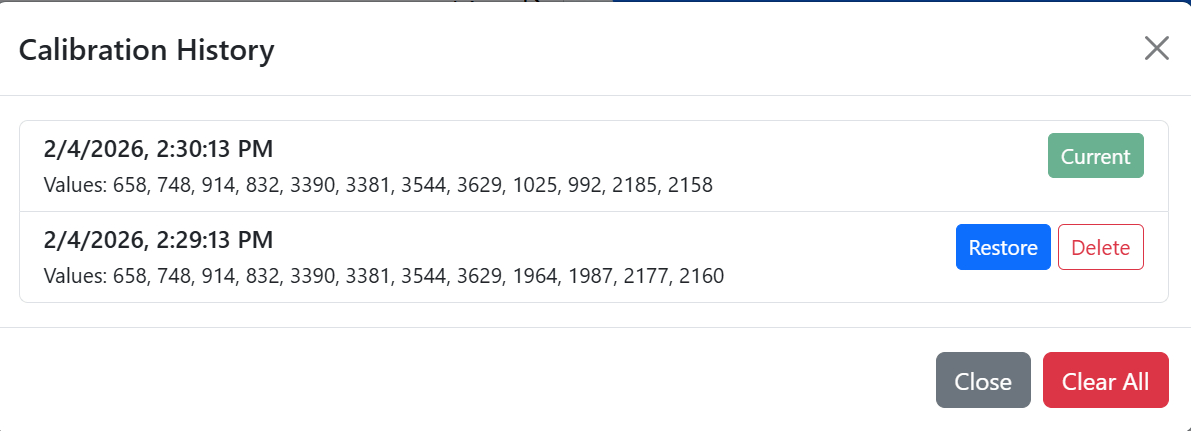

UI reference: permanent save control, restore list.

No. Drift is a physical problem — grit, worn potentiometers, weak springs, or failing modules.

Software mapping cannot rebuild those parts. At best you mask the symptom briefly; at worst idle output gets more chaotic and harder to reverse.

Best practice: confirm wear with Gamepad Tester Pro Stick Drift Test, replace the hardware, then return here to align the new sticks.

In normal cases, no. Stick calibration usually remains after DualSense and DualSense Edge firmware updates. If aim feels off after an update, re-check with Drift Test before writing again.

Almost always the Done step was pressed before a full gate sweep finished.

Slowly roll both sticks along the rim — clockwise and counter-clockwise — until the progress cue finishes, then confirm. If corners still spike, repeat range capture and do not save until the live plot looks sane.

Inside each removable stick module. Move a module to another Edge body and its calibration travels with it. Install different modules and you inherit whatever map those modules already hold.

Fine-tune only appears for DualSense and DualSense Edge.

Pick a stick, leave it at rest, nudge center with the D-pad, then hold each cardinal direction and adjust until cyan sectors show after you circle both ways. After one full rotation you can raise all directions evenly with the range control.

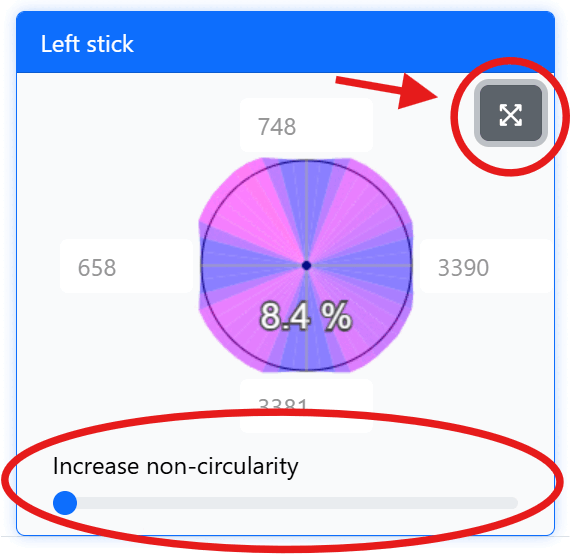

Panel walkthrough image: fine-tune UI.

Preview-only steps are low risk. The short permanent-write window is the danger zone: if USB power drops while the battery is dead or missing, the pad can brick.

Keep a charged battery installed, use a firm USB cable, and never yank the plug during Save permanently.

Most stock DualSense pads land near mid–high single-digit circularity error (roughly 7–9%) with even overshoot. Razor-perfect circles can feel sticky in some shooters.

Prefer a balanced shape over chasing one magic number. Trust the circularity view when left and right look even.

Ideas on the backlog:

• Clearer L2 / R2 travel checks beside stick work
• Stronger used-market DualShock 4 authenticity hints
• Tighter handoff from Stick Drift Test into this calibrate flow

Suggestions: info@gamepadtesterpro.com

Send a short bug note with pad model, Chrome/Edge version, and the exact step that failed — info@gamepadtesterpro.com.
